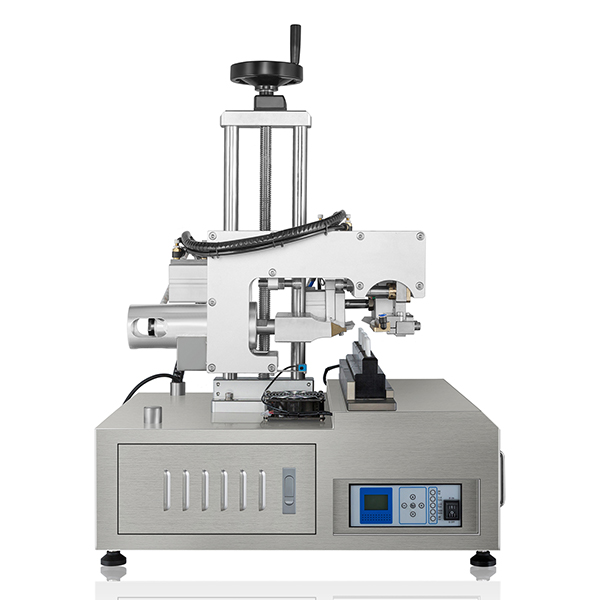

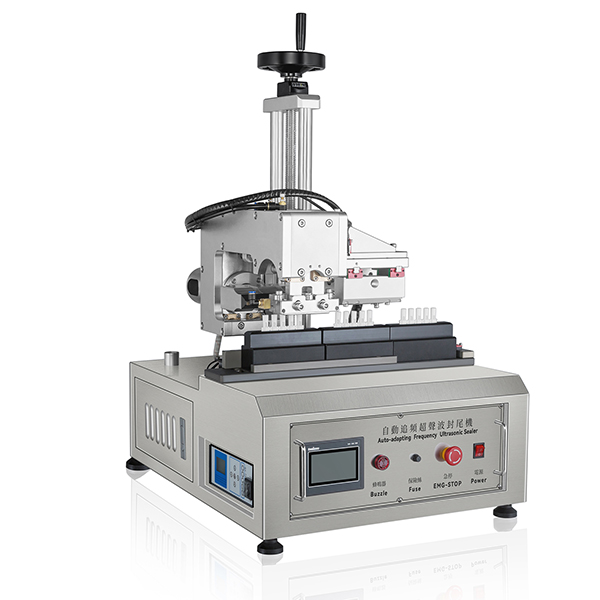

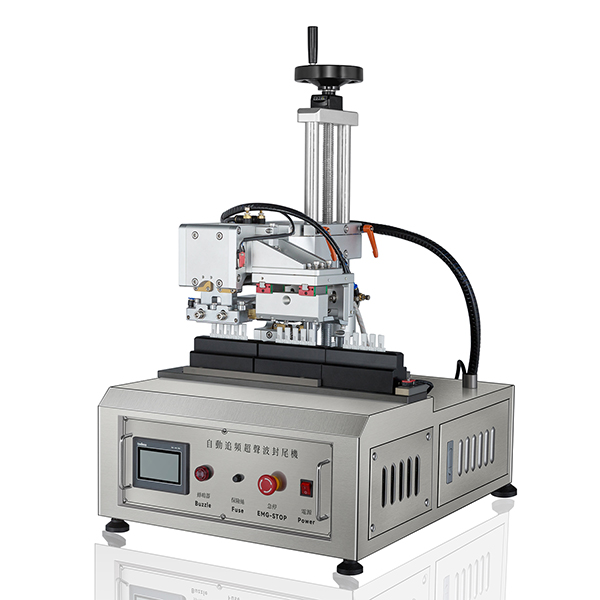

HX-003 Semi Automatic Ultrasonic Tube Sealer For Special Tube

Technical Parameters

Model	HX-003
Frequency	20kHz
Power	2600W
Power Supply	AC220V/110V  1PH  50/60HZ
Sealing Dia.	20-50mm
Tube Height	50-250mm
Capacity	8-18pcs/min
Air Pressure	0.5-0.6MPa
Dimension	L560*W537*880mm
N.W	105kgs



Features:

*Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.

* Manually feed the tube, machine could automatically start sealing and end trimming.

* Independent R &D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.

* PLC with touch screen control system, providing friendly operation experience.

* Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.

*Suitable for strip tube, normal tube, curved tube or customer-made shape tube sealing and trimming.

* No tube, no sealing and trimming function, reducing the machine and mould loss.

Application:

Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.
