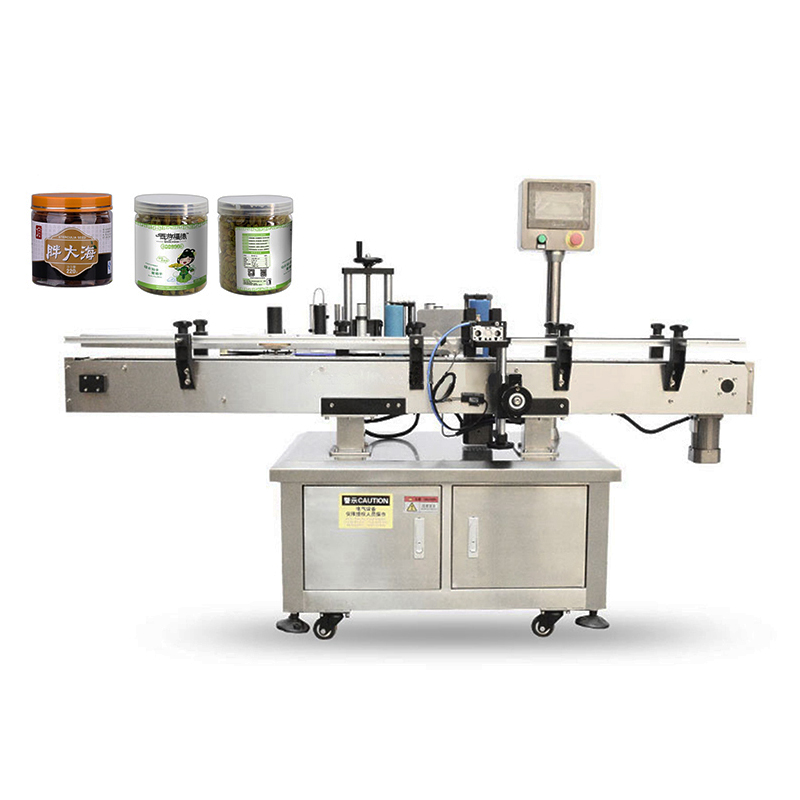

Automatic Round Bottle Belt Labeling Machine


Product Detail

Automatic round bottle belt labeling machine

  1. Can be applied to the round bottle labeling of industries such as pharmacy, food, daily chemical and the like, and can be pasted with a full – circumference label and a semi – circumferential label.
  2. Optional automatic rotary bottle uncrambler machine, can be directly connected to the front production line, automatic bottle feeding into the labeling machine, increase efficiency.
  3. It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging process of bottle and improve production efficiency.
09015d1d9a
Voltage (V/Hz) 110V/220V/380V
Label length 10mm~300mm
Label width 10mm~150mm
Bottle diameter 20mm~φ100mm
Bottle height 20mm~250mm
Roll Label outer diameter 300mm~350mm
Roll Label inner diameter 70mm~75mm
Accuracy ±1mm
Label speed 30~120pcs/min
Conveyor speed 5~25m/min
Suitable label type Adhesive sticker label(Transparent label is available)
Working air pressure 0.4-0.6Mpa
Power 1500W
Weight 200KG
Overall dimension 2000mm×900mm×1500mm
