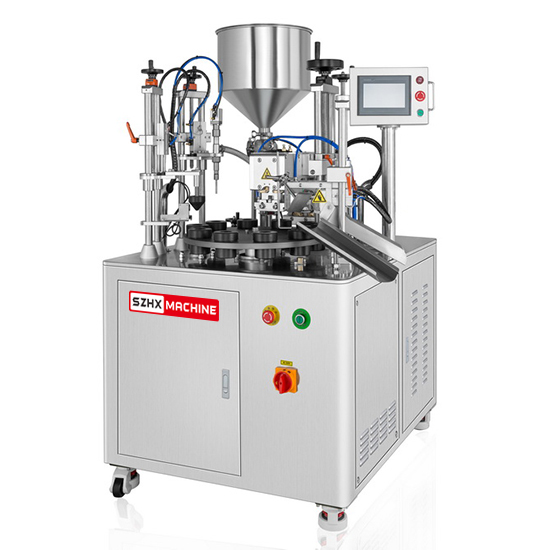

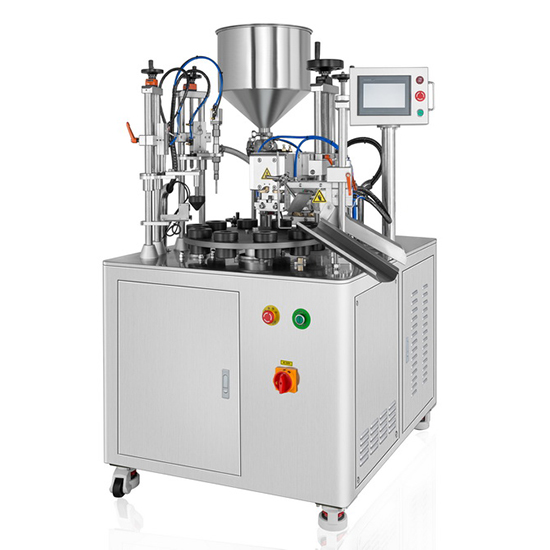

Standard

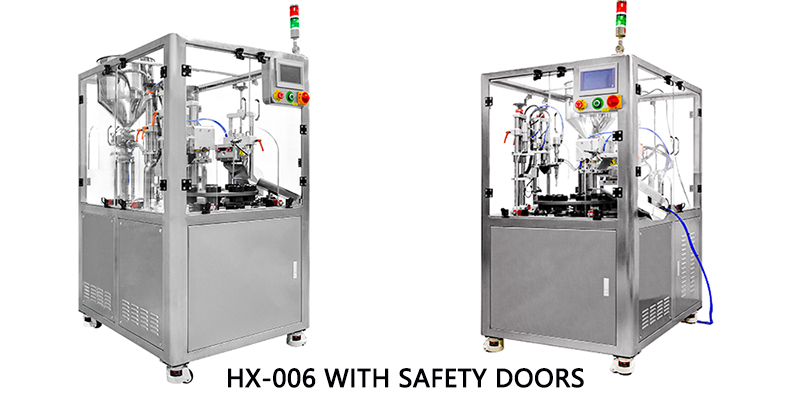

Safety Door

Features:

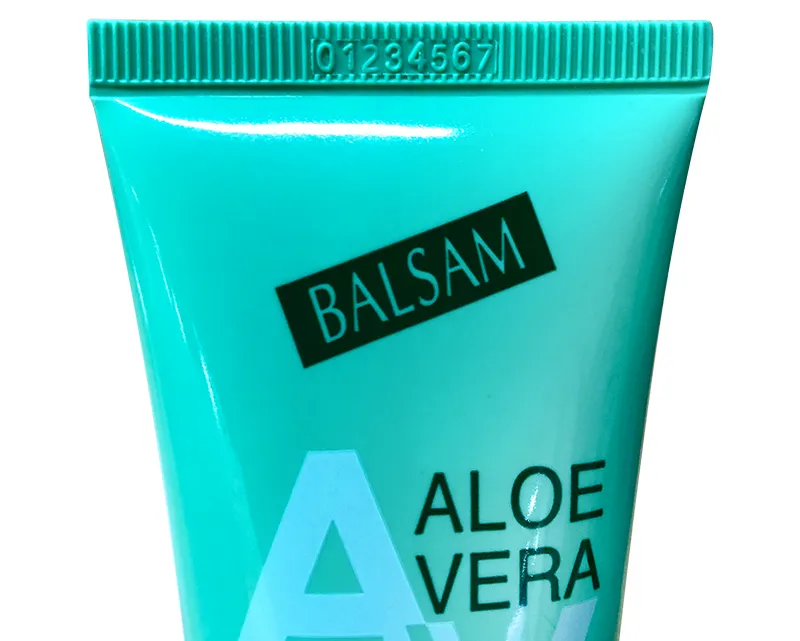

• Manually tube feeding, automatic registration mark identifying, filling, sealing with coding, end trimming, tube out feeding.
• Cam indexing system could position precisely for ten working stations.
• Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
• Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
• PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem and solve immediately.
• Made of 304 stainless steel, acid and alkali resistance, corrosion resistance.
• No tube, no fill, no tube, no seal function, reducing the machine and mould loss.
• Adopts Anti-dripping filling nozzle.

Application:

Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.

Machine Options:

• Auto Refill pump
• Heating and mixing system for material hopper
• Air blow system for high viscous and sticky material
• Safety door
• Industrial water chiller
• 316L Stainless Steel Contact parts

Machine Parameters
Model	HX-006
Frequency	20kHz
Power	2600W
Power supply	AC220V/110V
Filling Range	A.6-60ml B.10-120ml C.25-250ml D.50-500ml
Filling accuracy	±1g
Capacity	20-25pcs/min
Tube diameter	13-50mm
Tube height	70-250mm
Working pressure	0.6 MPa
Size	L900*W1100*H1600mm
N.W/G.W	310kgs

Main part list:
Ultrasonic system	Automatic frequency tracing
Benchmarking electric eye	Panasonic, Japan
PLC	Coolmay，CN
electric relay	Omron, Japan
Touch Panel	WEINVIEW，China Taiwan
Inductive switch	SICK, Germany
Air cylinder	AirTAC，China Taiwan
Solenoid valve	AirTAC，China Taiwan
Motor	zhongdamotor CN
Partitioner	JOUDER，China Taiwan
Frequency converter	DELTA，China Taiwan
Stepper motor	Leadshine，CN

Note: We don't provide emulsifying machine. This machine cannot make filling materials by itself. If you need, we could help you to contact manufacturer of emulsifying machine.

Warranty:

1 year warranty from us (Excludes consumables). We also do repairs after the warranty period (Labour, shipping, and parts fee applied).
